Kia Sportage: System setting and activation / System setting
.png)

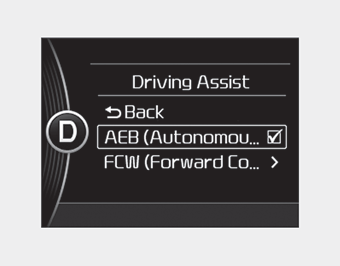

The driver can activate the AEB by placing the ignition switch to the ON position
and by selecting 'User Settings', 'Driving Assist', and 'Autonomous Braking System'.
The AEB deactivates, when the driver cancels the system setting.
.png)
The warning light illuminates on the LCD display, when you cancel the AEB system.

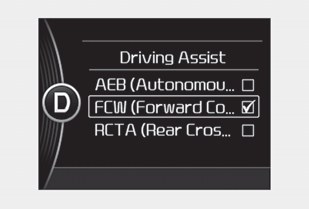

The driver can monitor the AEB ON/OFF status on the LCD display. When the warning
light remains ON with the AEB activated, we recommend you to have the system checked
by an authorized Kia dealer.
.png)
.png)

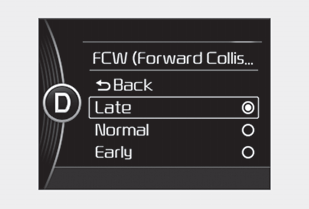

The driver can select the initial warning activation time in the User Settings
in the instrument cluster LCD display. The options for the initial Forward Collision
Warning include the following:
- EARLY - When this condition is selected, the initial Forward Collision
Warning is activated earlier than normal. This setting maximizes the amount
of distance between the vehicle or pedestrian ahead before the initial warning
occurs. Even though FCW is set in early mode, if the vehicle in front stops
abruptly, the FCW warning may be displayed later than anticipated.
- NORMAL - When this condition is selected, the initial Forward Collision
Warning is activated normally. This setting allows for a nominal amount of distance
between the vehicle or pedestrian ahead before the initial warning occurs.
- LATE - When this condition is selected, the initial Forward Collision
Warning is activated later than normal. This setting reduces the amount of distance
between the vehicle or pedestrian ahead before the initial warning occurs.
The AEB will activate activated when the AEB is selected on the LCD display,
and when the following prerequisites are satisfied:
The ESC (Electronic Stability Control) is activated.
- The driving ...
