Kia Sportage: Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve (UD/B_VFS) Repair procedures
| 1. |
Switch "OFF" ignition.
|
| 2. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 3. |

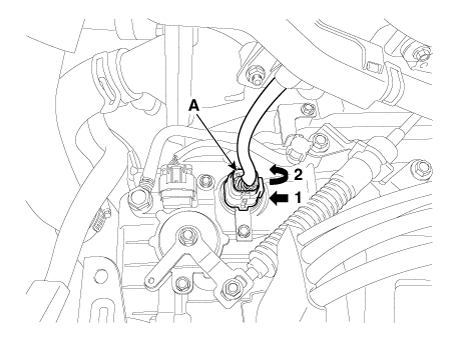

Disconnect the solenoid valve connector (A).
|
| 4. |

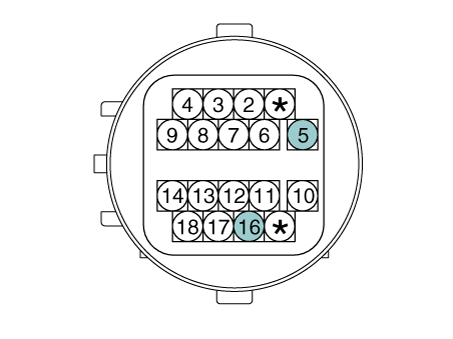

Measure the resistance between power terminal (5) and signal terminal
(16).
|
Specification : 5.3 ± 0.3 Ω
|
|
| • |
Maintain clean condition so that foreign substance does not
get into the automatic transaxle.
|
| • |
Use a coated apron, latex gloves, and stainless tray to prevent
foreign substance from getting into the transaxle.
|
|
| 1. |
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover").
|
| 2. |

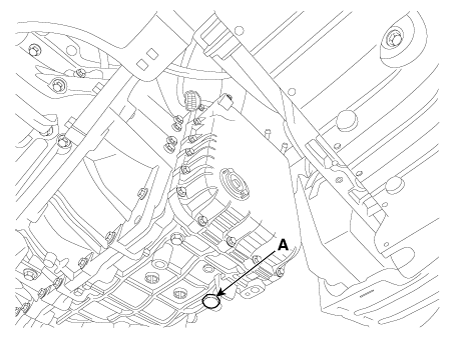

Remove the ATF drain plug (A), allow the fluid to drain out and then
reinstall the drain plug.
|
Tightening torque:
33.3 - 43.1 N·m (3.4 - 4.4 kgf·m, 24.6 - 31.8 lb·ft)
|
| •
|
The existing ATF drain plug gasket must be replaced
with a new one. (Do not reuse it.)
|
| •
|
ATF can be reused. Collect it in a clean beaker.
|
|
|
| 3. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 4. |

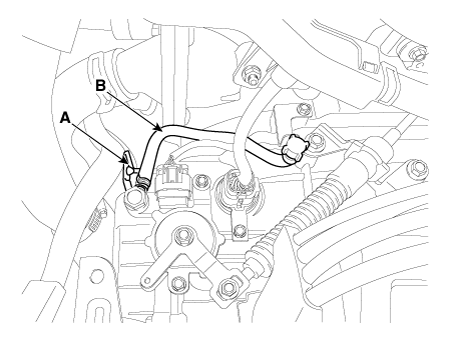

Remove the wiring bracket (A) and the air breather hose (B).
|
Tightening torque:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
|
|
| 5. |
Lift the vehicle after loosening valve body cover upper bolts.
|
| 6. |

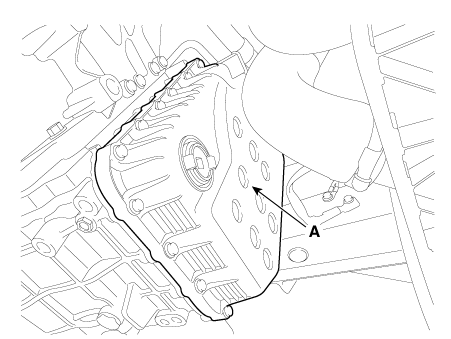

Remove the valve body cover (A) by loosening bolts.
|
Tightening torque:
11.8 - 13.7 N·m (1.2 - 1.4 kgf·m, 8.7 - 10.1 lb·ft)
|
|
| 7. |

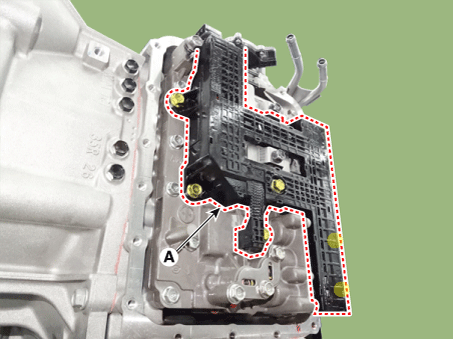

Remove the main harness module (A) after removing the bolts.
|
Tightening torque:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
|
|
| 8. |

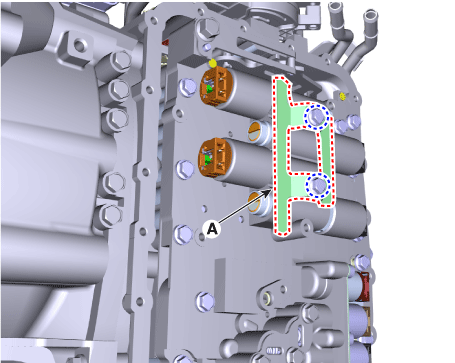

Remove solenoid valve support bracket (A) after loosening the bolts.
|
Tightening torque:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
|
|
| 9. |

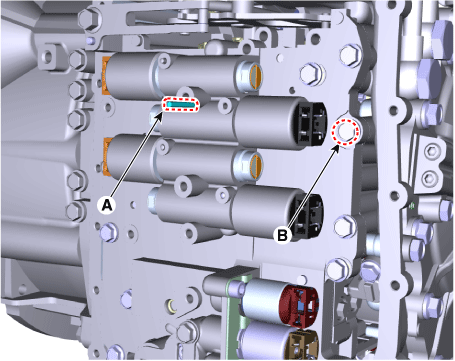

Remove the solenoid valve fixing pin (A) and loosen the valve body mounting
bolt (B).
|
Tightening torque:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
|
|
| 10. |

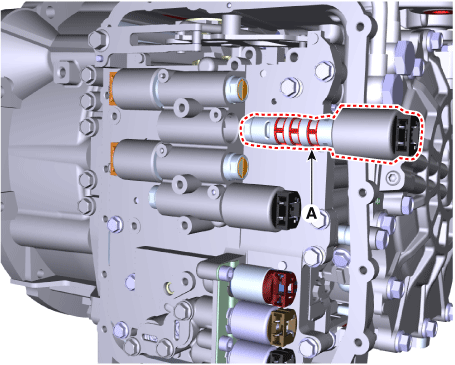

Remove the underdrive brake control solenoid valve (A).
|
| 1. |
Install in the reverse order of removal.
| •
|

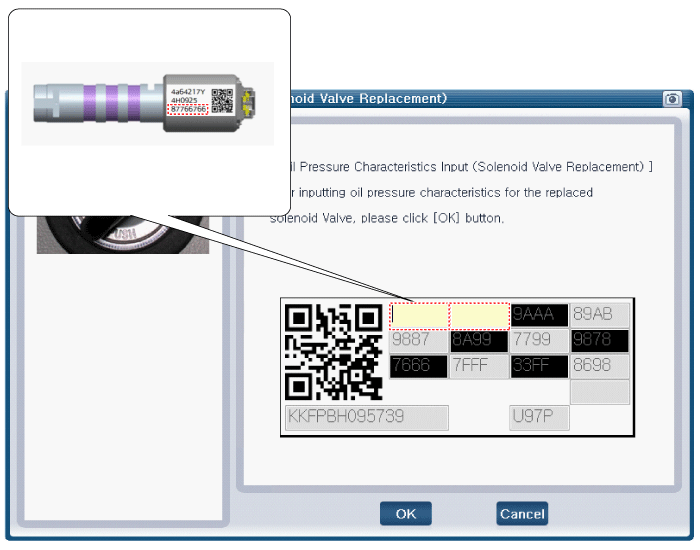

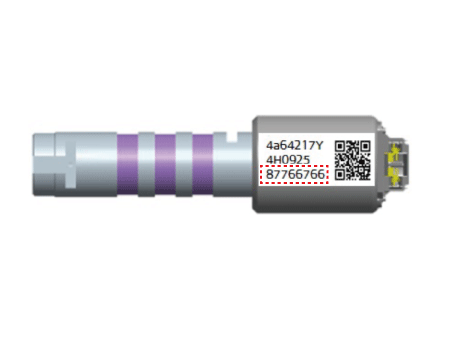

Check the code (oil pressure characteristics value)
at the first before installing the solenoid valve.
|
| •
|

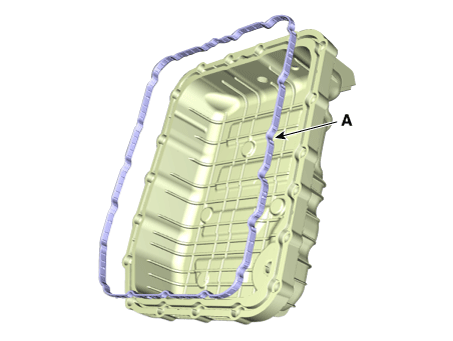

The existing valve body cover gasket (A) must be replaced
with a new one. (Do not reuse it.)
|
|
|
| 2. |
Perform the procedures below after installing.
| (1) |
Refill the automatic transaxle with fluid.
(Refer to Hydraulic System - "Fluid")
|
| (2) |
Clear the diagnostic trouble codes (DTC) using the KDS/GDS.
Disconnecting the battery negative terminal will not clear the
DTCs. Clear DTCs using the KDS/GDS at all times.
|
| (3) |

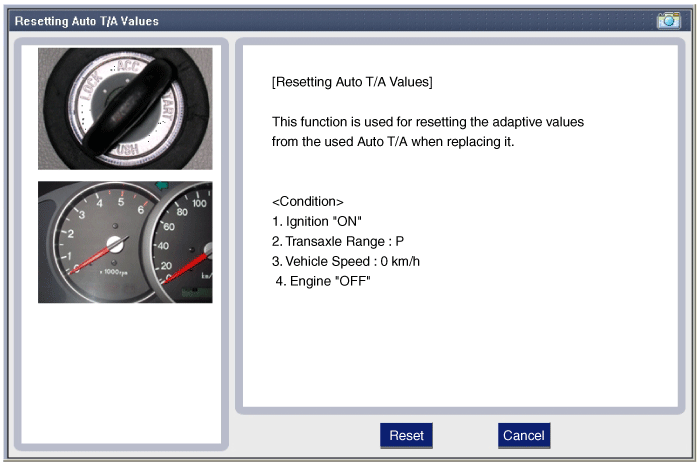

Reset the automatic transaxle adaptive values using the KDS/GDS.
|
| (4) |

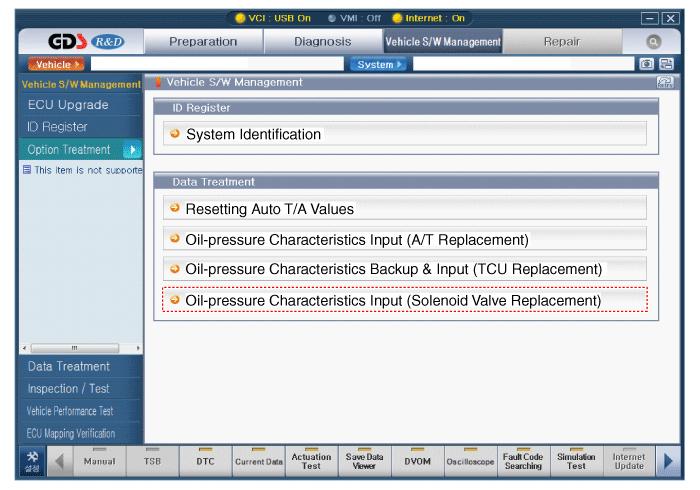

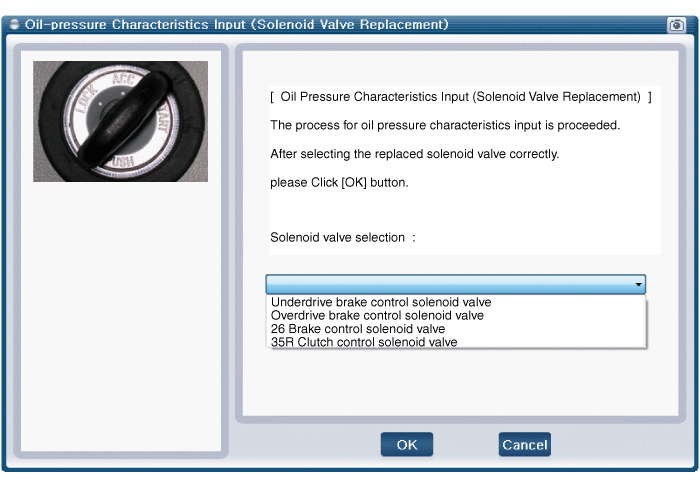

Perform the oil pressure characteristics input procedure using
the KDS/GDS.
|
| (5) |
Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "Adjustment")
|
| (6) |
After installing, check for leakage of coolant or fluid from
hose connection during engine start.
|
|
Specification
Item
Specification
Control type
N/H (Normal High)
Control pressure (kpa (kgf/cm², psi))
...
