Kia Sportage: Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve (UD/B_VFS) Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve (UD/B_VFS) Schematic diagrams

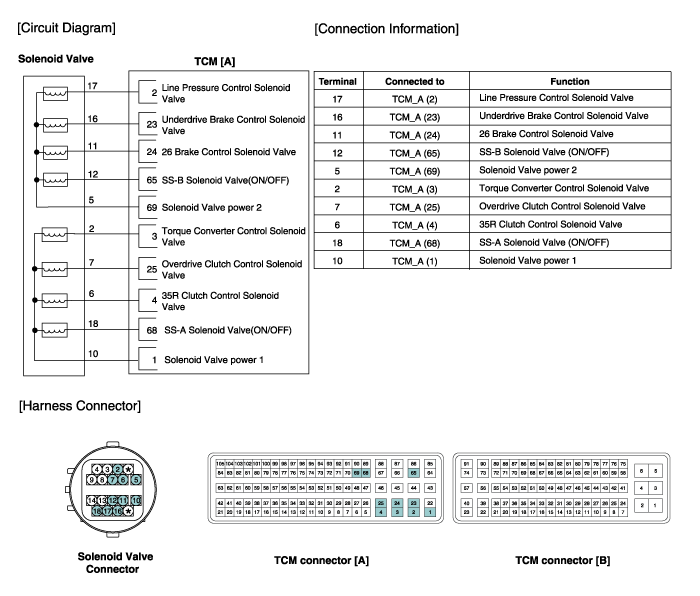

Circuit Diagram

Underdrive Brake Control Solenoid Valve (UD/B_VFS) Description and operation
Description • Underdrive brake control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable cur ...

Underdrive Brake Control Solenoid Valve (UD/B_VFS) Repair procedures
Inspection 1. Switch "OFF" ignition. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - &qu ...
