Kia Sportage: LCD Display / User Settings Mode

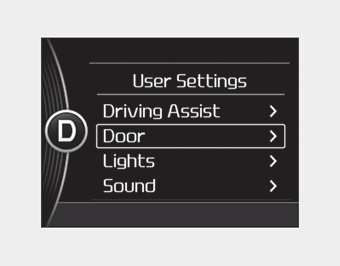

Description
.png)
In this mode, you can change setting of the doors, lights, etc.
WARNING
Do not adjust the User Setting while driving.You may lose your steering control
and cause severe personal injury or accidents.

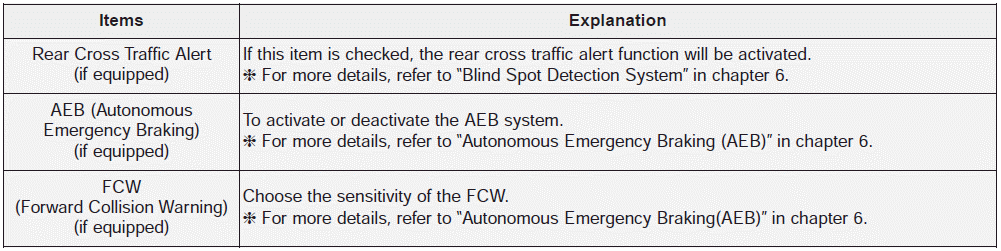

Driving Assist
.png)

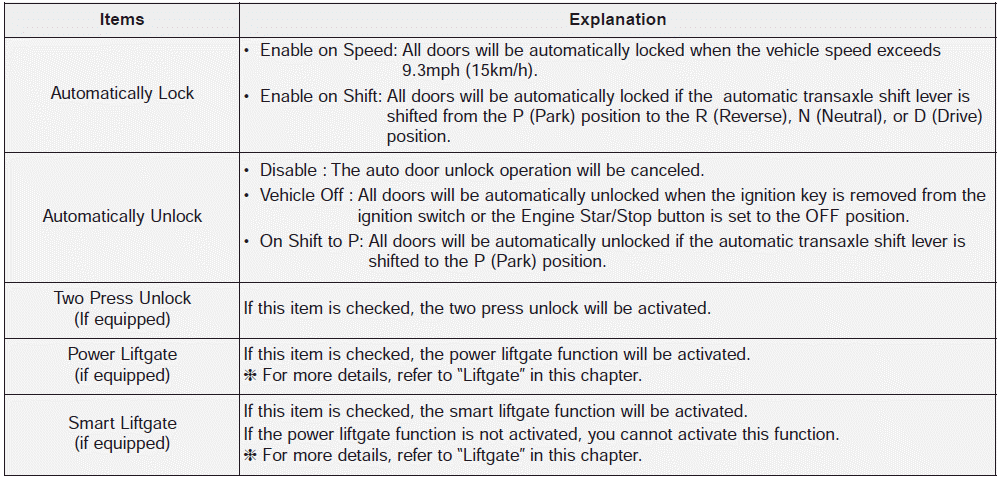

Door/Liftgate
.png)

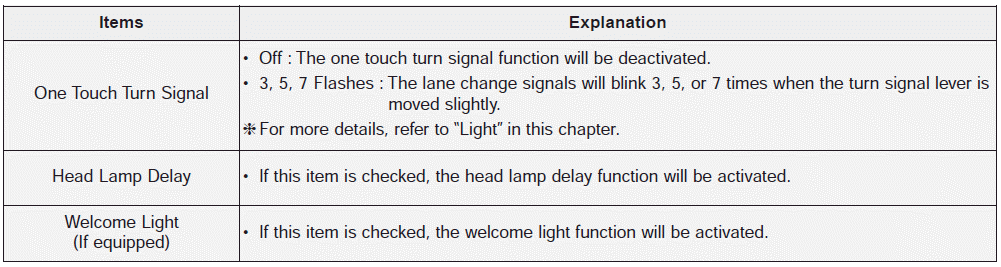

Light
.png)

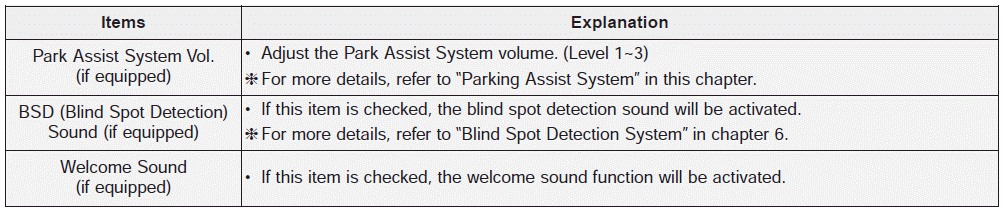

Sound
.png)

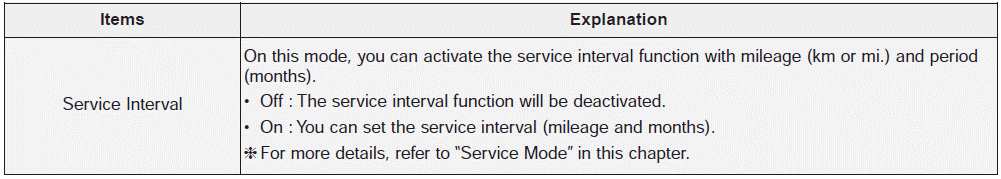

Service interval
.png)

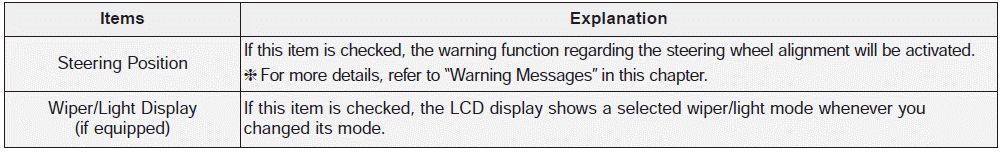

Convenience
.png)

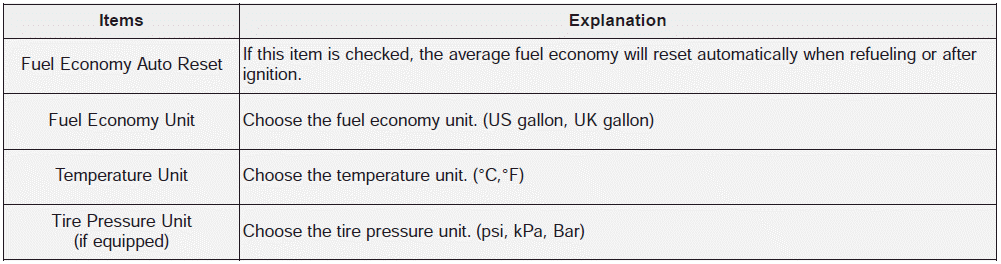

Other features
.png)
