Removal |
|
|
1. |
Disconnect the negative (-) battery terminal.
|
2. |

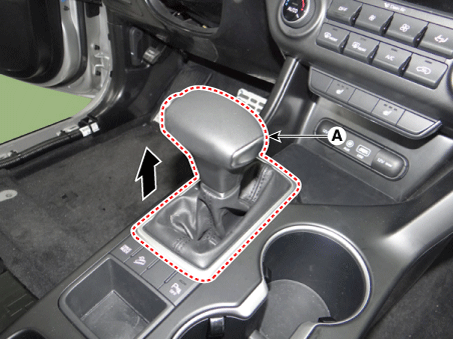

Remove the gear knob & boots (A) pull both of it up.
|
3. |

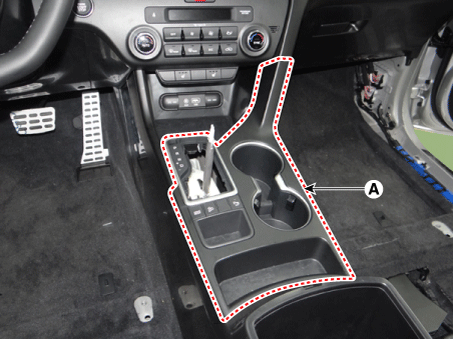

Remove the console upper cover (A) by using a remover.
|
4. |

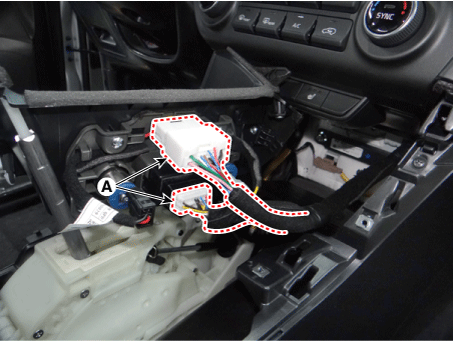

Disconnect the console upper cover connectors (A).
|
5. |

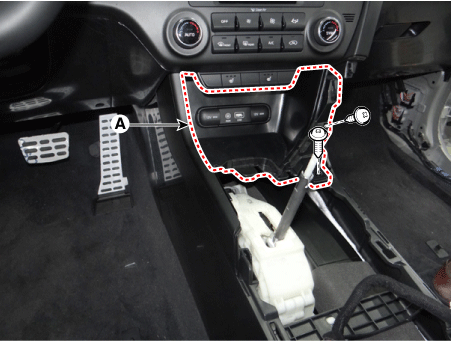

Remove the console front tray (A) after loosening the mounting screws.
|
6. |

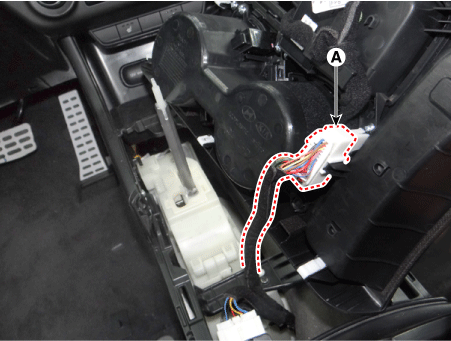

Disconnect the console front tray connectors (A).
|
7. |

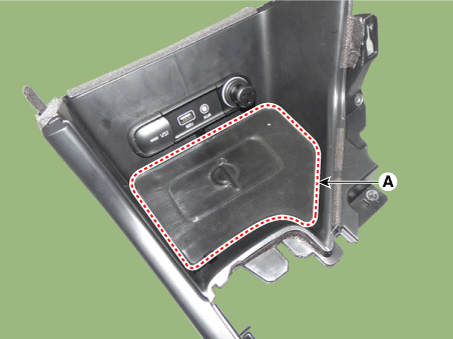

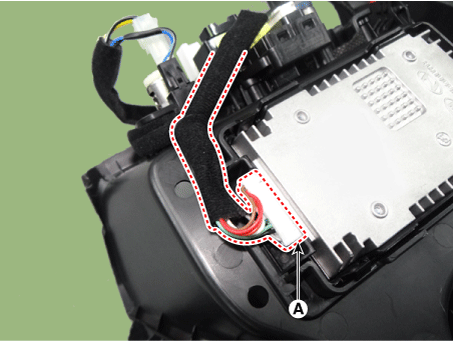

Remove the wireless charging pad (A).
|
8. |
Disconnect the wireless power charging unit connector (A).
|
9. |

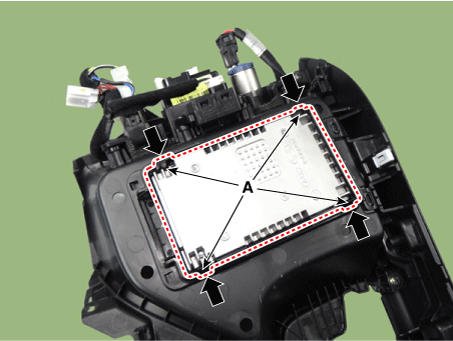

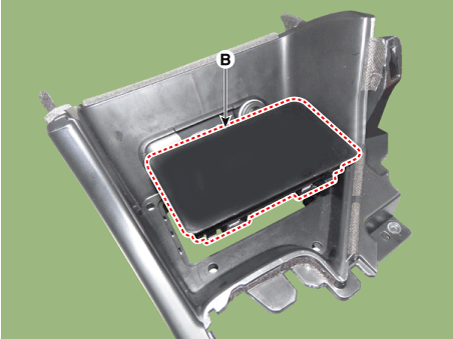

Remove the wireless power charging unit (B) by pressing the fixing hooks
(A).
|
Installation |
1. |
Install the wireless power charging unit.
|
2. |
Connect the wireless power charging unit connector.
|
3. |
Install the wireless charging pad.
|
4. |
Connect the console front tray connectors.
|
5. |
Install the console front tray.
|
6. |
Connect the console upper cover connectors.
|
7. |
Install the console upper cover.
|
8. |
Install the gear knob & boots.
|
9. |
Connect the negative (-) battery terminal.
|
[Diagnosis With KDS/GDS] |
1. |
The body electrical system can be more quickly diagnosed for troubles
by using the vehicle diagnostic system (KDS/GDS).
KDS/GDS provides the following information.
|
2. |
To diagnose the vehicle by using the diagnostic equipment, select "vehicle
model" and "wireless power charger system" to be inspected.
|
3. |

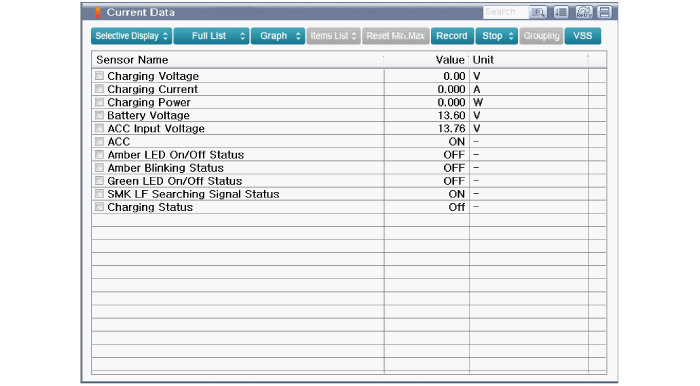

To inquire the current status of input/output values, select the "Sensor
Data" menu
The input/output values of the sensors corresponding to the selected
module can be checked.
|
4. |

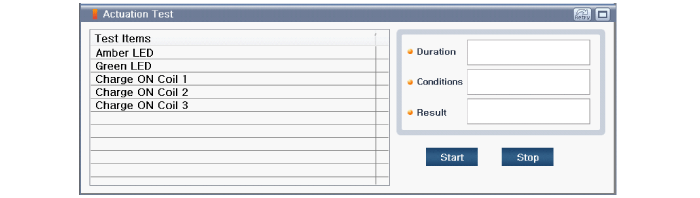

To perform forced operation of the selected module input, select "Actuation
Test".
|
5. |

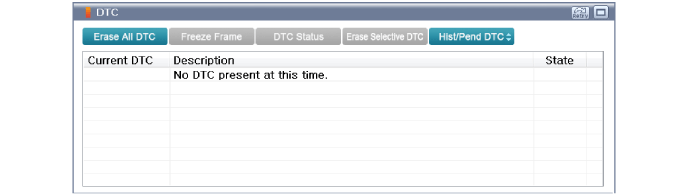

To inquire the cause of trouble for each module by self diagnosis, select
'Diagnostic Trouble Code'.
|
