Removal

Roof antenna

1.	Disconnect the negative (-) battery terminal.

2.	Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly")

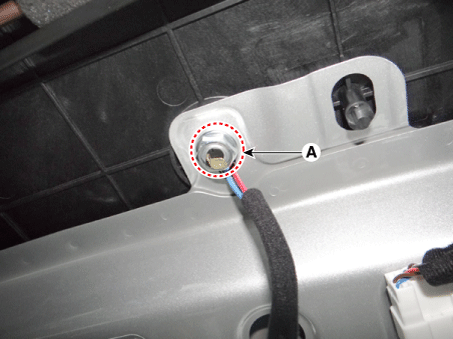

3.	Disconnect the roof antenna cable and connectors (A).

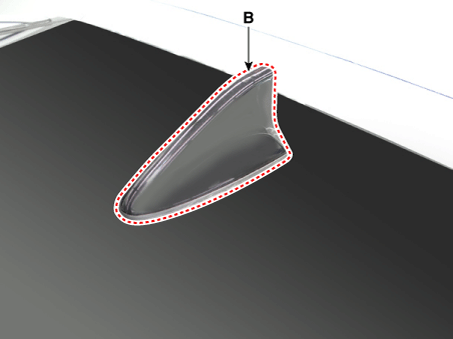

4.	Remove the roof antenna (B) after loosening a nut (A).

Installation

Roof anenna

1.	Install the roof antenna.

2.	Connect the roof antenna connectors.

3.	Install the roof trim assembly.

Connect the negative (-) battery terminal.

•	Make sure that the cables and connectors are plugged in properly.

•	Check the AVN system for normal operation.
