Kia Sportage QL (2015-2024) Service Manual / Body Electrical System / AVN System / AVN Remote Controller Components and components location

Components

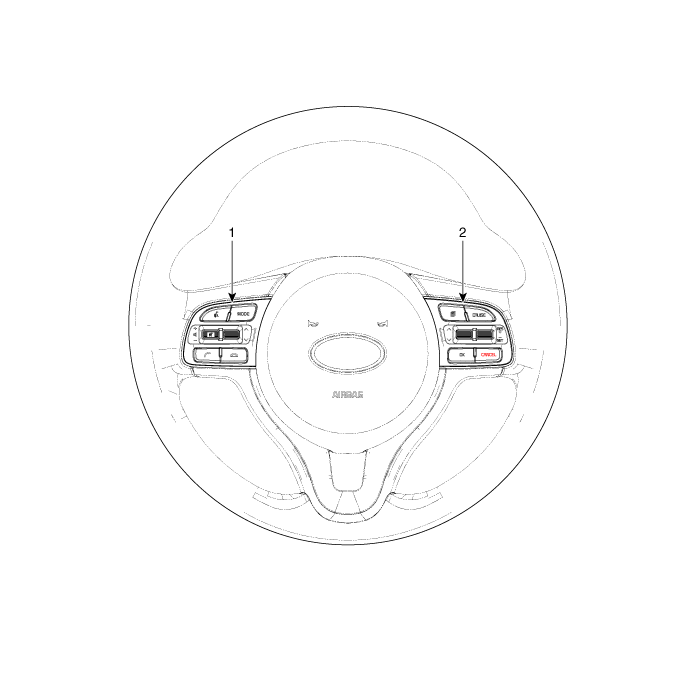

1. Left Remote Control Switch (Audio + Hands free)

2. Right Remote Control Switch
(Cruise+Trip Computer)

AVN Antenna Repair procedures

Removal Roof antenna 1. Disconnect the negative (-) battery terminal. 2. Remove the roof trim assembly. (Refer to Body - &q ...

AVN Remote Controller Schematic diagrams

Circuit Diagram [Audio] [Audio + Bluetooth] [Audio + Bluetooth + Voice] [Trip] [Trip + ACC] [Trip + ACC + Speed Limiter] [Trip + SCC ...
